Elverson, PA

Checked the AC side of the system . Checked the air filter and found good . Checked the wiring connections and the voltages on high volt and low volt. Inspected the indoor coil and flushed and tested the drain line. Checked the blower motor condition and inspected the blower amps . Went to the outdoor unit and inspected the wiring connections and the components . Checked and tested the pressures by using superheat and sub cooling methods. Checked the amps for the compressor and the fan motor and checked the indoor cooling temps at the supply and return. The AC system is working fine at this time of service.

Luis 8-1-25 Luis performed ac tune up on 3 ton Amana heat pump from 2021. Check all electrical components low and high voltage connections ok. Inspect air filter ok. Flush drain line and test pump pump ok. Check airflow across coil 19 degree split. Went outside and checked refrigerant pressures and levels ok check for any error codes no codes showing. Capacitor reading normal numbers 40/5 reading 39/5 cycle heat pump ok. Provided estimate to install surge protection for indoor unit and also adding uv light.

Luis 8-1-25 perform ac tune up on Amana two stage two ton ac unit, check electrical components low and high voltage is replaced standard air filter 16 x 25 x1 flush condensate drain line test ez trap and flush pump. Measure airflow across coil a 19° temperature split went outside and clean condenser coil using customer supply hose inspect capacitor and super boost fan motor wiring, capacitor valleys OK check refrigerant pressures and levels. Cycle ac unit ok. I did not find any issue with unit at this time I went over with customer regards surge protection and bacteria protection. Customer not interested at this time.

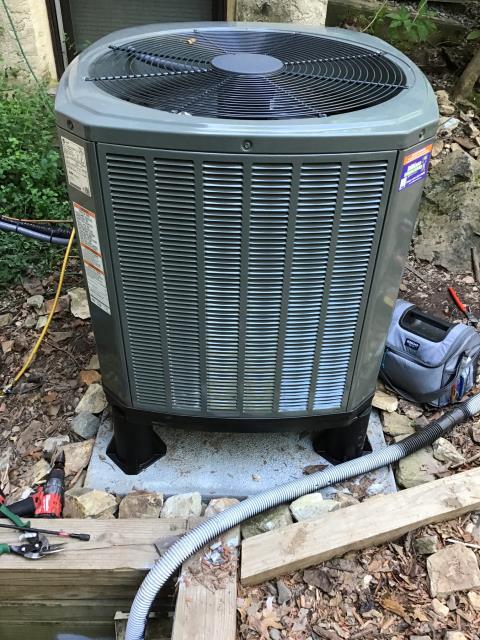

Installed new Trane air handler. Installed 15 kw heat kit and single point entry kit. Installed new return drop and box and new supply plenum. Installed 115v condensate pump and vinyl with an EZ trap. Installed blower motor surge protector and ecobee lite thermostat. Tested all operations and cleaned work area. Installed new Trane outdoor 3 ton heat pump. Replaced outdoor pad and Installed on heat pump legs. Installed new disconnect with surge protector. Replaced lineset and drilled new hole for entry. Charged to appropriate charge adjustment and cleaned work area.

Estimate

Reviewed project to determine scope of work needed. New metal, new lineset, new disconnect and wiring, 15 kw heat kit.

Set new unit on existing return box. Adapted to supply ductwork. Flushed lineset and piped into new unit. Reconnected high and low voltage connections to unit. Ran new condensate drain to new condensate pump. Wired all safeties in series to break 24V R call to thermostat. Set new unit on new pad and leveled. Hung new rectorseal disconnect box on wall and sealed. Adapted lineset to new unit. Brazed pressure tested evacuated and charged system. Made all high and low voltage connections to unit. Performed all test out procedures cleaned all work areas and reviewed installation with homeowner.

Estimate

I arrived for no cooling call. I started with the downstairs system check the blower air filter and coil. I went to the outdoor unit and check the capacitor and check for voltage. I hooked up my gauges. Turned the system on check my super heat and sub cool and found the system was low on refrigerant. I gave the customer a few options. He opted to go with the leak search. I found a small leak on the inside of the indoor coil and I found a leak on one of the copper lines outside on the outdoor unit. Quote price for indoor coil and outdoor repair was around 5,300.00 . Customer decided to go with an estimate for a new system. I talked to Angie. It’s scheduled for tomorrow between 11 and 12 collected for leak search and diagnostics for tonight paid by credit card.

Bosch Inverter installed 2024 There is oil Boiler on a separate thermostat. Not wired to heat pump thermostat There are rust marks around bathroom HVAC supply. Which isn’t uncommon. The one office does have dirt on one area outside round supply grille, but no mold inside round duct. Supply branch ducts (8) are hard piped. Supply trunk is internally lined. There is some discoloration inside but this is typical of internally line/insulate ducts. Supply Trunk is 8’ of 20x12 with 4’ of 14x12 and the transition piece in between. The most comprehensive way to ensure clean duct is to replace this trunk with one that is externally insulted. Replaced fiberglass filter with a pleated MERV 8 filter provided by homeowner. Size 14x30x1 Discussed APCOX whole home air treatment system. Will need remote bulb that can be installed in return box to treat indoor coil. There is no wet switch in auxiliary pan. Nothing to shut off equipment if pan fills with water. Left estimate for wet switch. Wou
