Avondale, PA

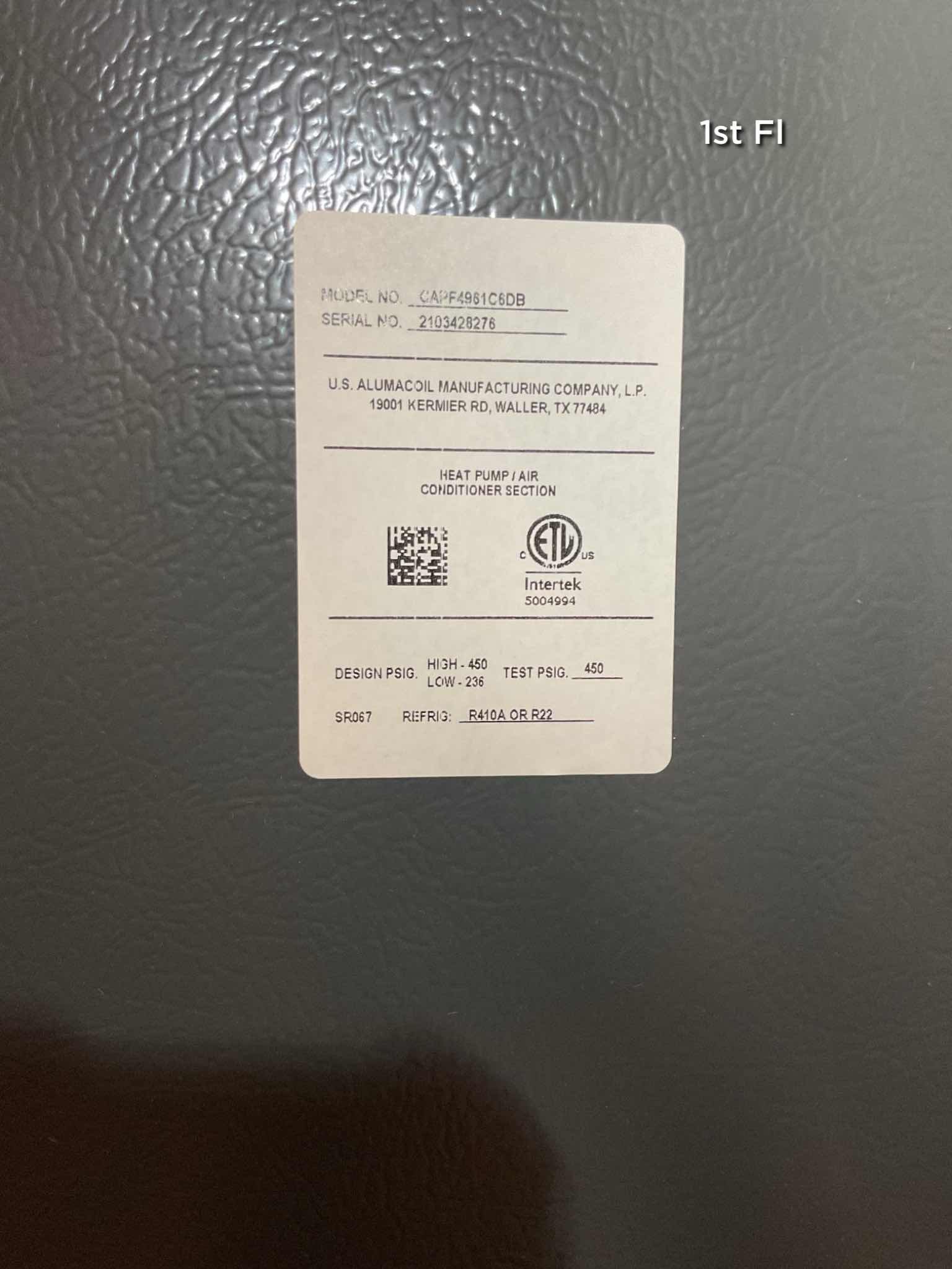

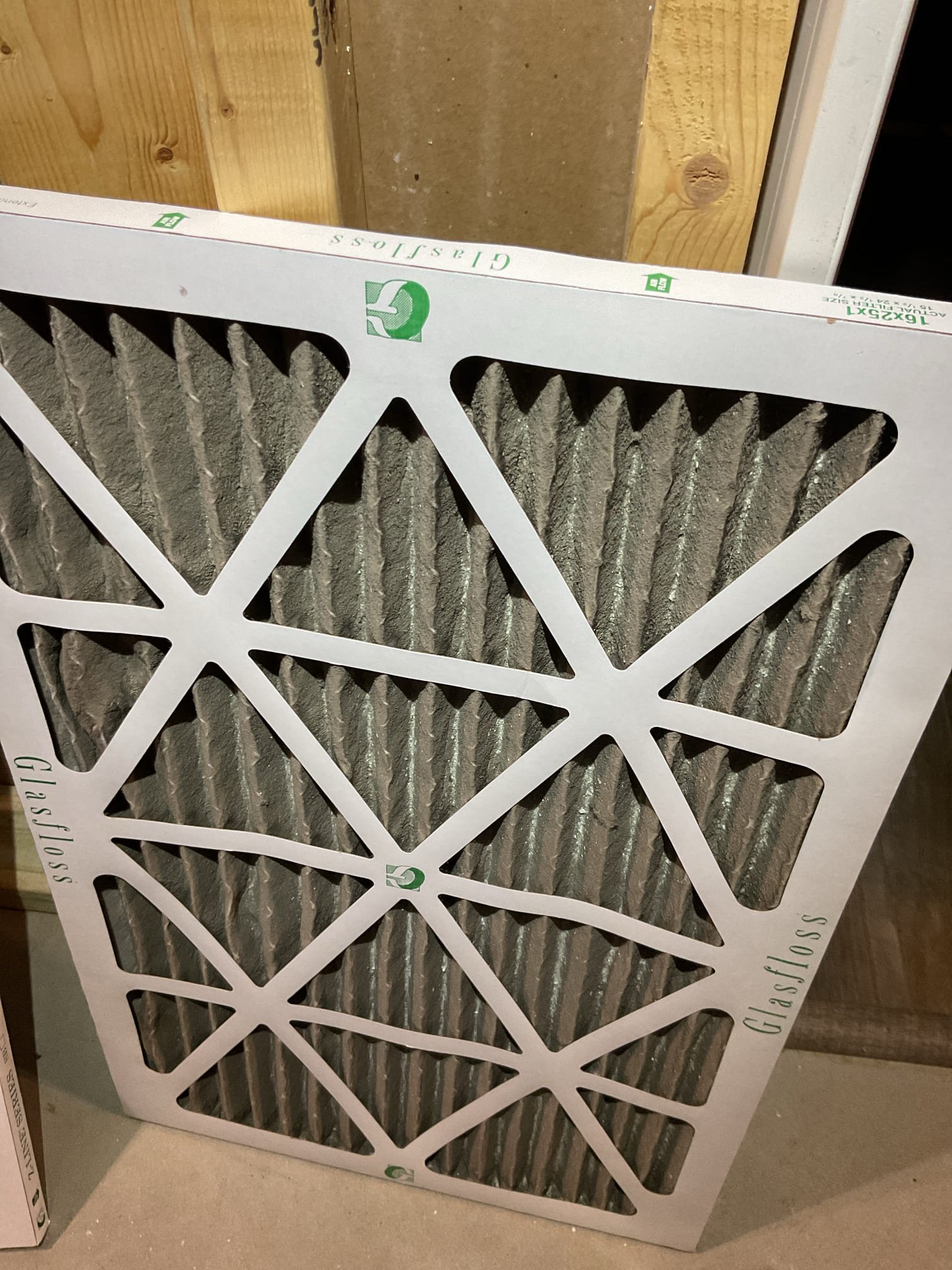

Completed (2) AC tune ups for 1st Floor system 4 Ton Amana communicating 2stage AC system 2nd Floor system 3 Ton Amana AC (Non communicating) Both systems were installed April 2021 Replaced 16x25x1 filter Replaced 16x20x1 filter Both very dirty last replaced in October. I recommend replacing every 2 months For each system: Indoor and outdoor coils in good condition; cleaned back side of 2nd floor outdoor coil with water Inspected wiring, controls, electric motors and components; left estimates for surge protectors again. Homeowner agreed. Installed surge protectors at the (3) ciruits of the 2 systems that did not have surge protectors. (1) At second floor outdoor equipment and (1) at each of the 2 indoor blower motors. Tested afterwards. Measured temperature split and static pressure Inspected drains; cleared EZ trap, tested pump; added treatment tabs to drain pan. Recommend wet switch/flood prevention switch. Provided email estimate Checked integrity of compressor motor (mega

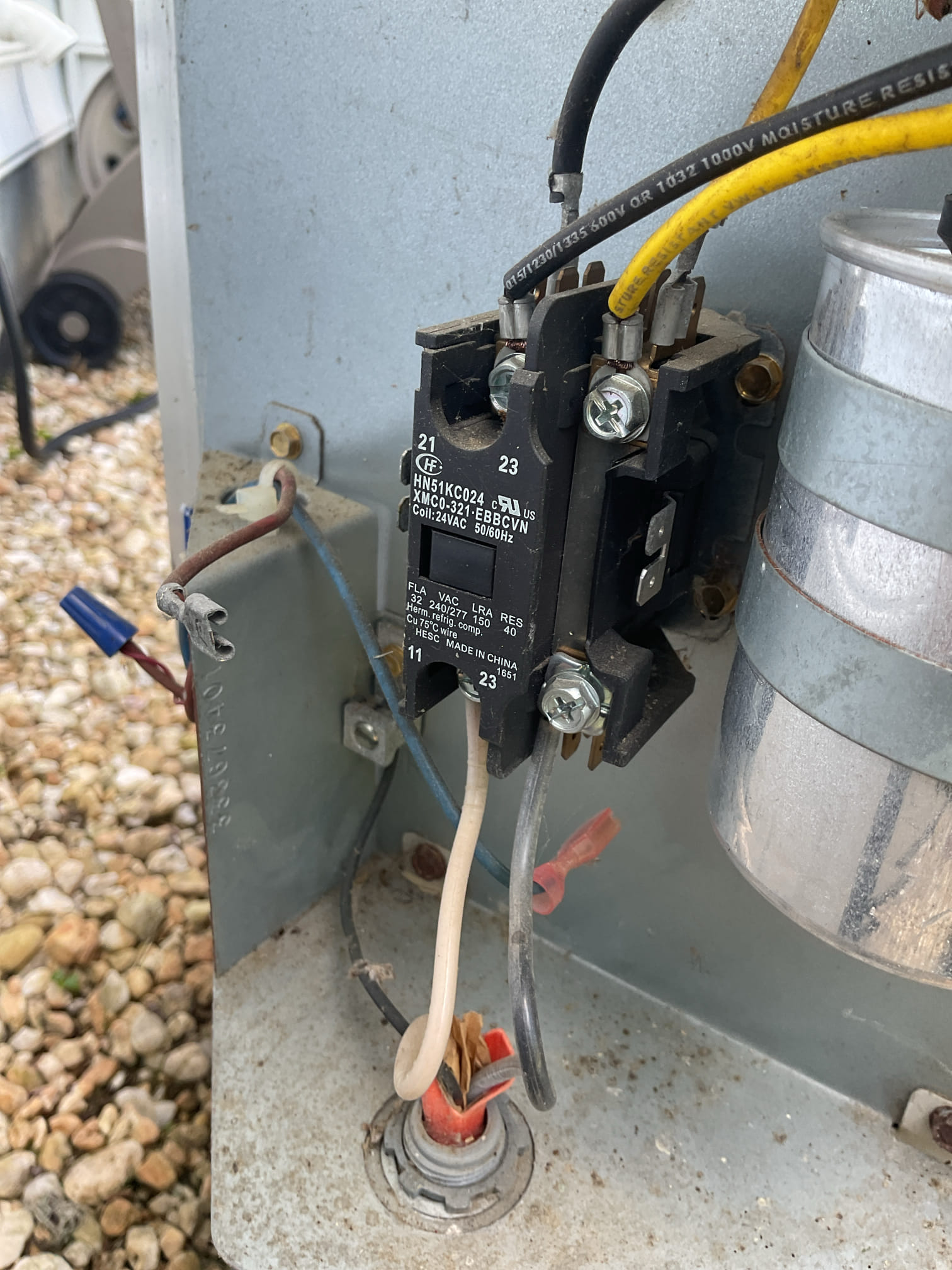

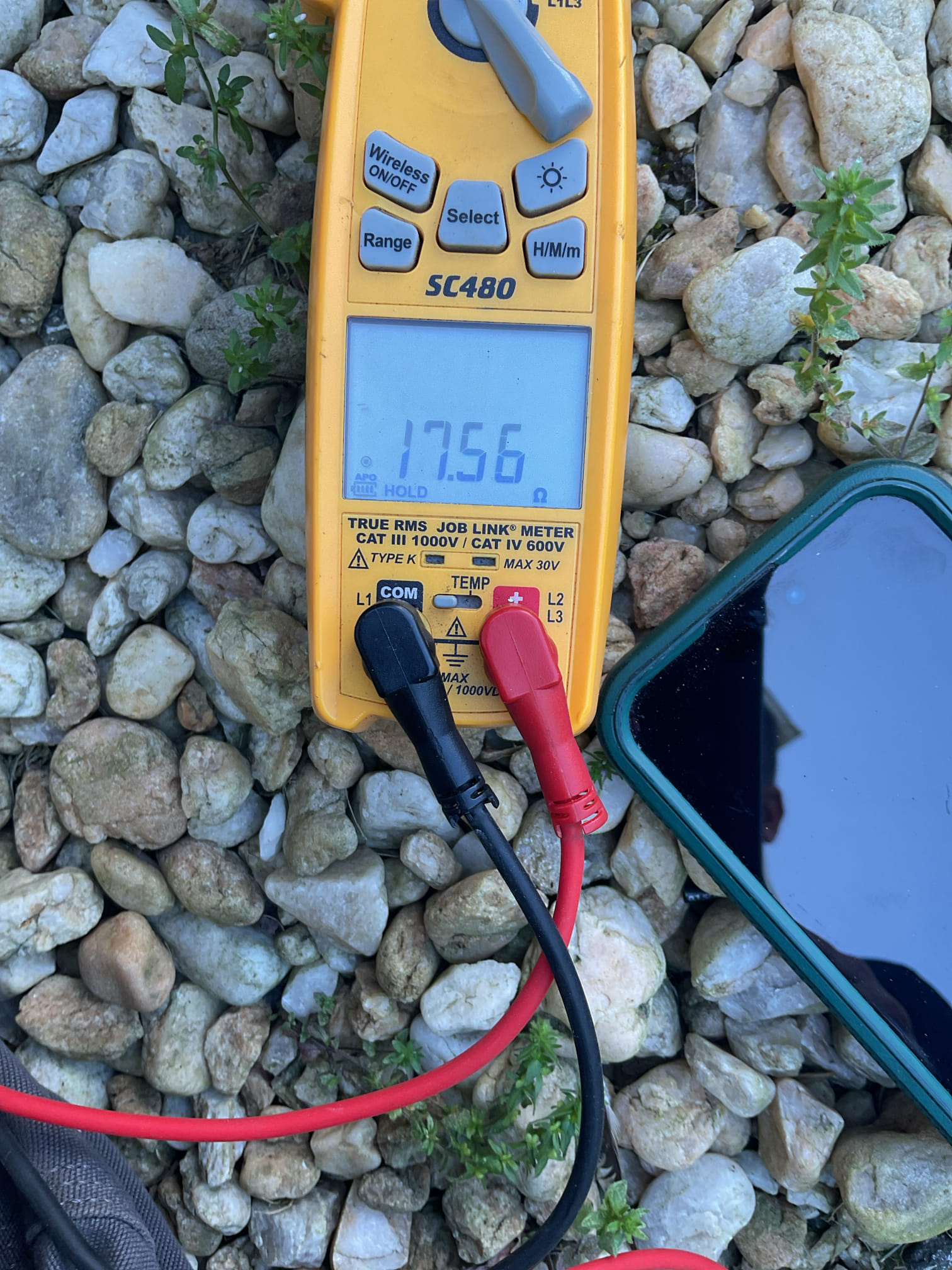

5/28/26 Dan I arrived for a no Cooling call on a 8 yr old Bryant system. I started with inspecting the indoor unit. I confirmed that the filter was ok , but I had no power. I lost communication to the thermostats and the indoor unit. Found indoor fuse was blown . Before replacing the fuse I wanted to go outside and look at the contactor to make sure it’s not shorted and or there’s no wires that are touching, causing a short. I found the outdoor contactor was indeed shorted , had 3.4 ohms at the coil. I did quote the customer for a new contactor and a diagnostic fee This is not a recall Or warranty. The customer agreed with the repair. I removed the fail, contactor and replaced with the new OEM contactor and then tested system operation. Everything is back up and running I collected for $419.33 paid by credit card.

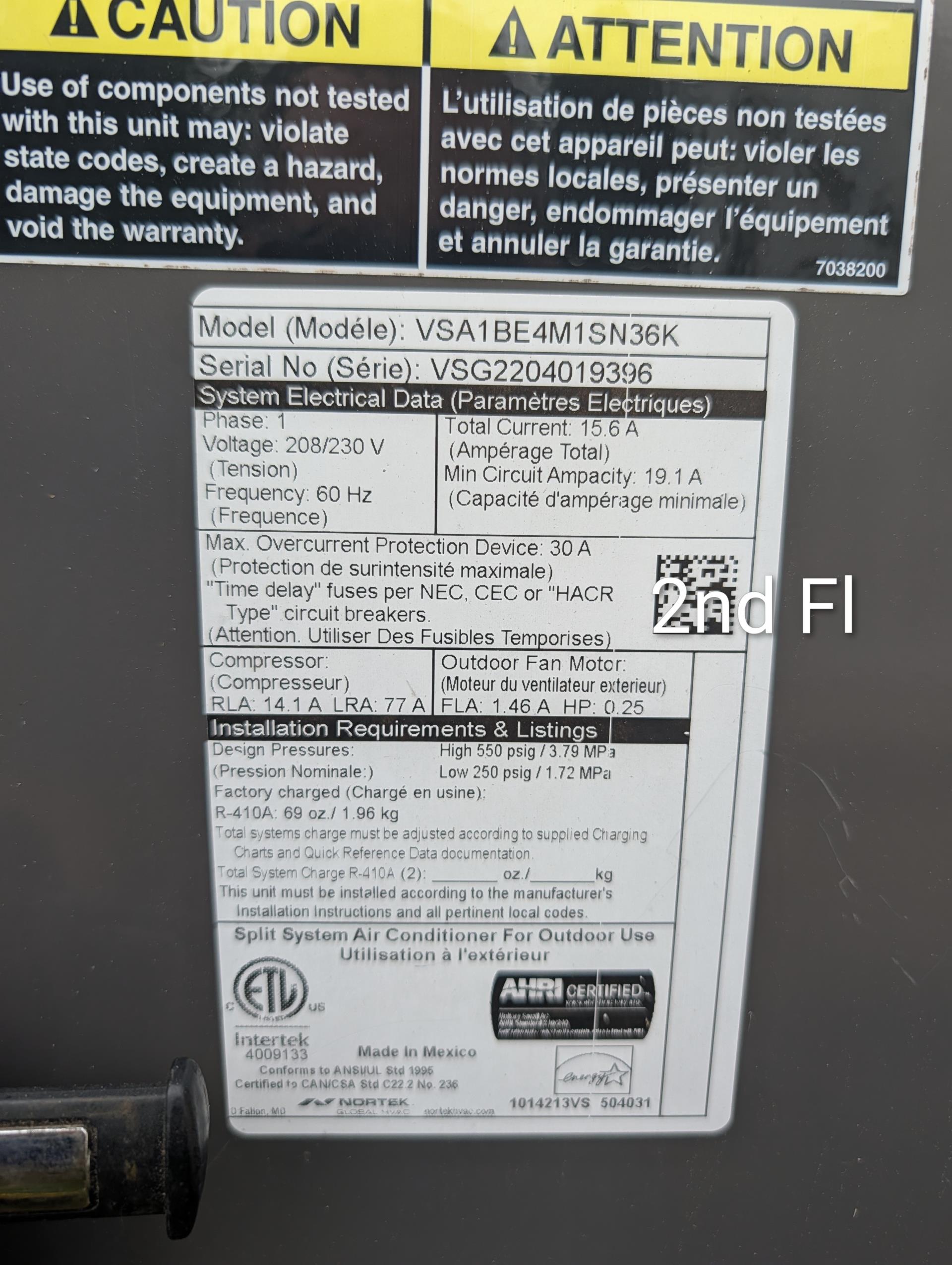

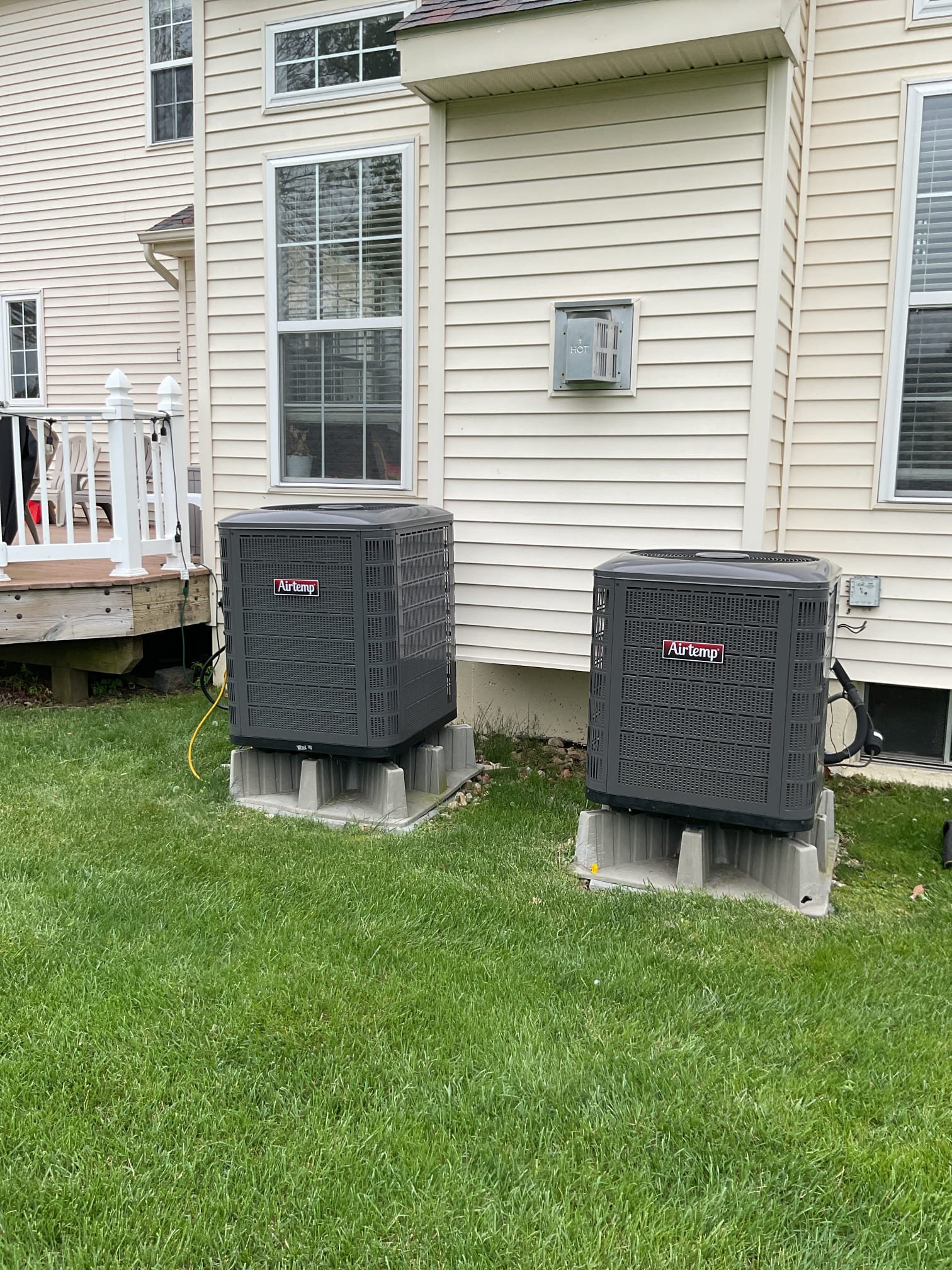

Completed (2) Plan member AC tune ups. AC systems are from 2022; 1st floor furnace was replaced by Dibiase December 2023; Second floor furnace is original to home 2005 (21 years old) Replaced 16x25x1 filter (1st Floor) Replaced 16x20x1 filter (2nd Floor) For each system: Indoor and outdoor coils in good condition Inspected wiring, controls, electric motors and components; Measured temperature split and static pressure Inspected drains; cleared drain line. added treatment tabs to drain pan. Checked integrity of compressor motor (mega ohm test) Assessed refrigerant charge checked pressures. Installed wet switch water safety and surge protector for second floor gas furnace (120V furnace circuit) AC systems operating well at this time. As a reminder the second floor furnace is 21 years old which is considered beyond replacement age. The second floor system has had a history of refrigerant leak but is ok at this time. Collected balance for (2) Plan renewals, install surge pr

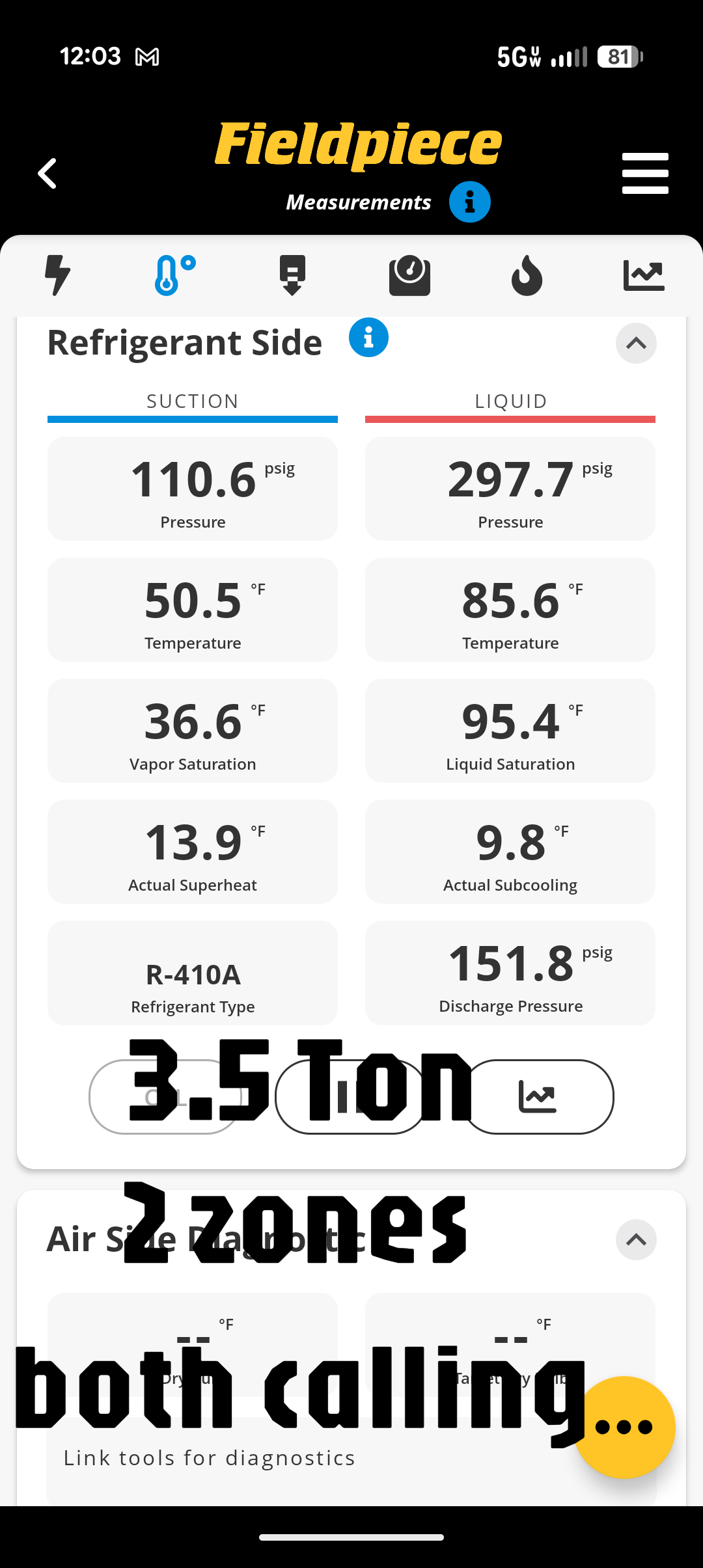

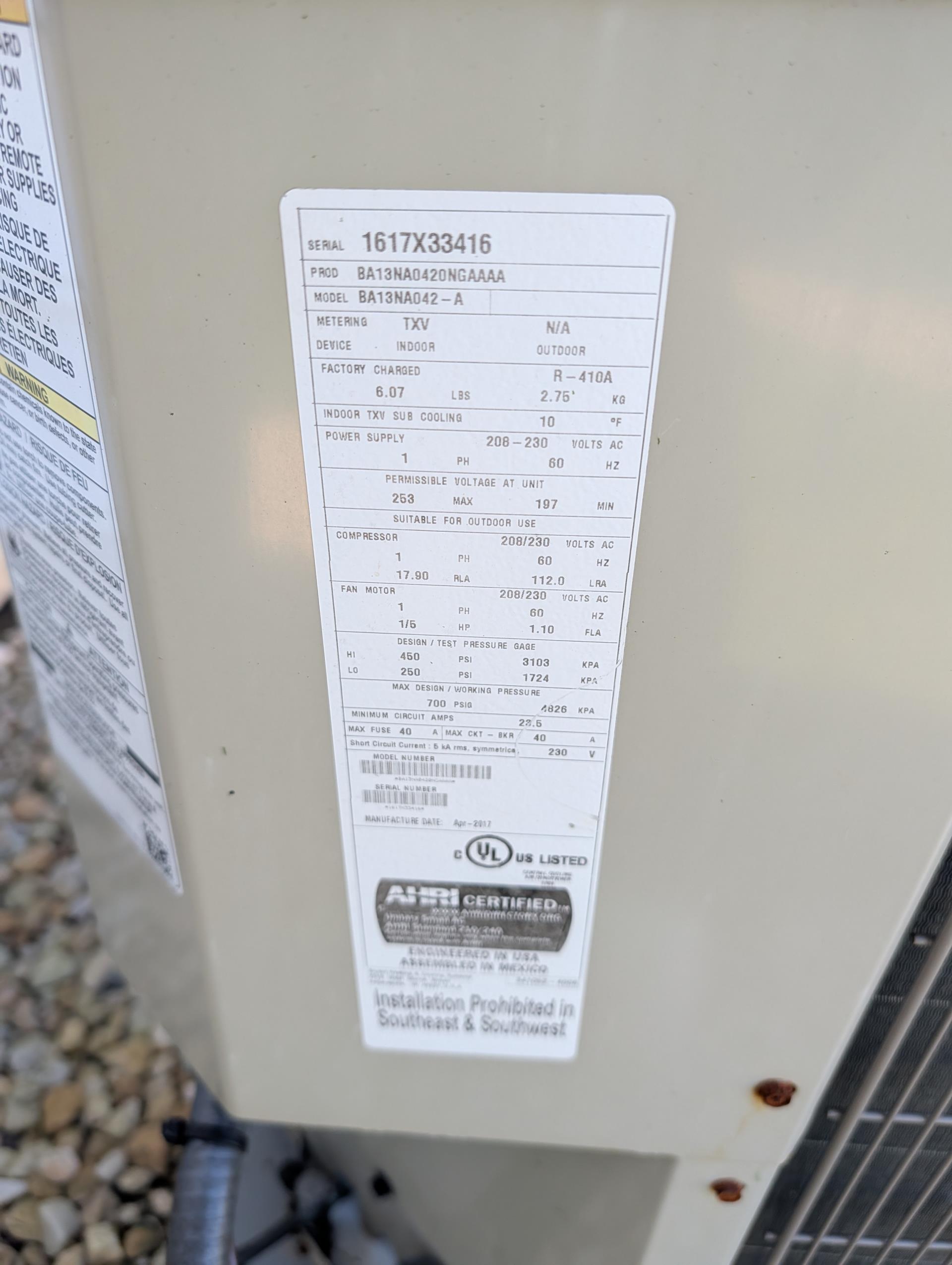

Completed AC tune up for 3.5 Ton Bryant AC system Equipment is 8 years old install early 2018. 2 zones. EWC zoning panel. The zoning panel is being peered by the HVAC system transformer. Powering the panel from a separate transformer is preferred. Provided email estimate for this Replaced 16x25x1 filter Indoor and outdoor coils in good condition Inspected wiring, controls, electric motors and components; left estimates for surge protectors. 1 for outdoor equipment and 1 for indoor equipment Measured temperature split and static pressure Inspected drains; added treatment tabs to pump. Flushed drain and tested pump. System lacks overfill protection and there is no wet switch/flood safety. Provided estimates to install these. Checked integrity of compressor motor (mega ohm test) Assessed refrigerant charge checked pressures. 10° Subcooling matches manufacturer target, AC system operating well at this time.

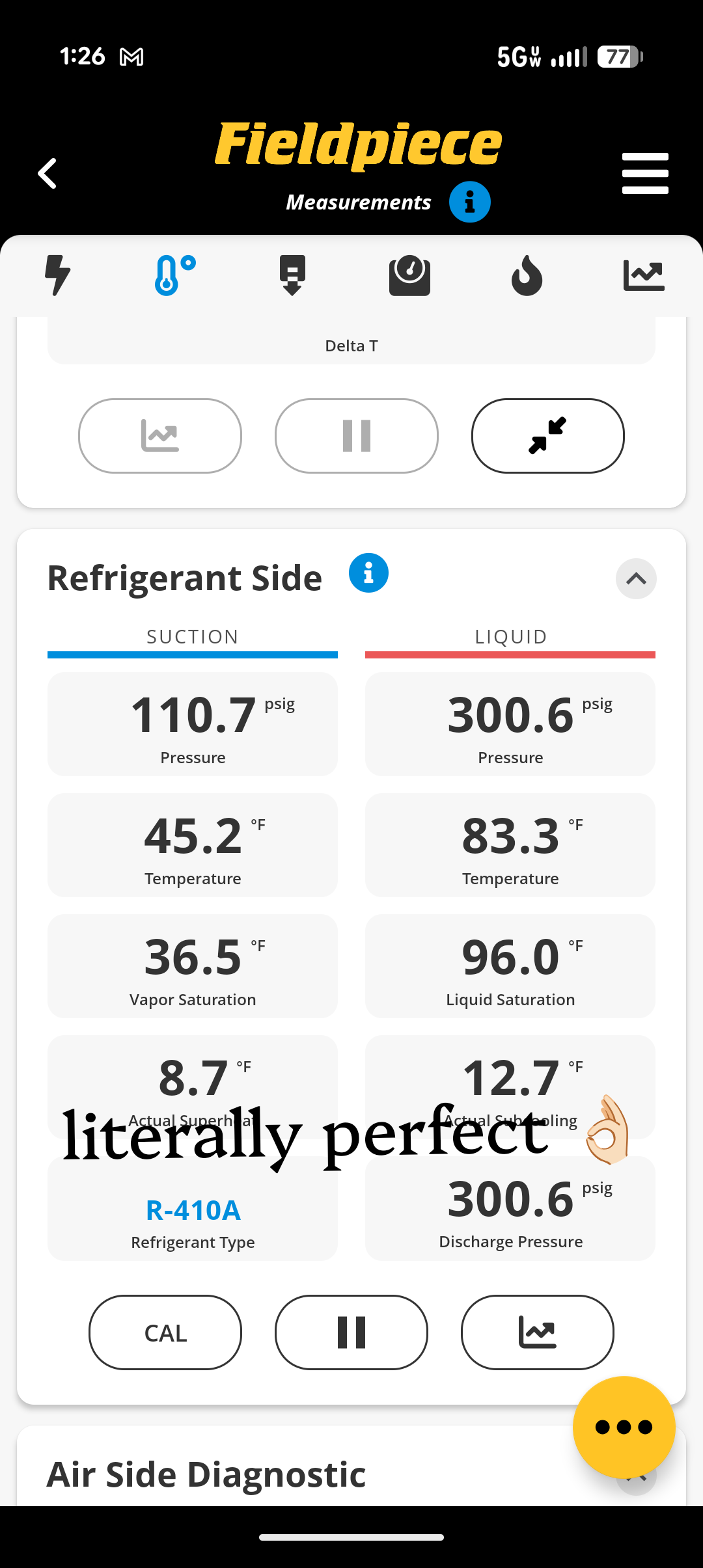

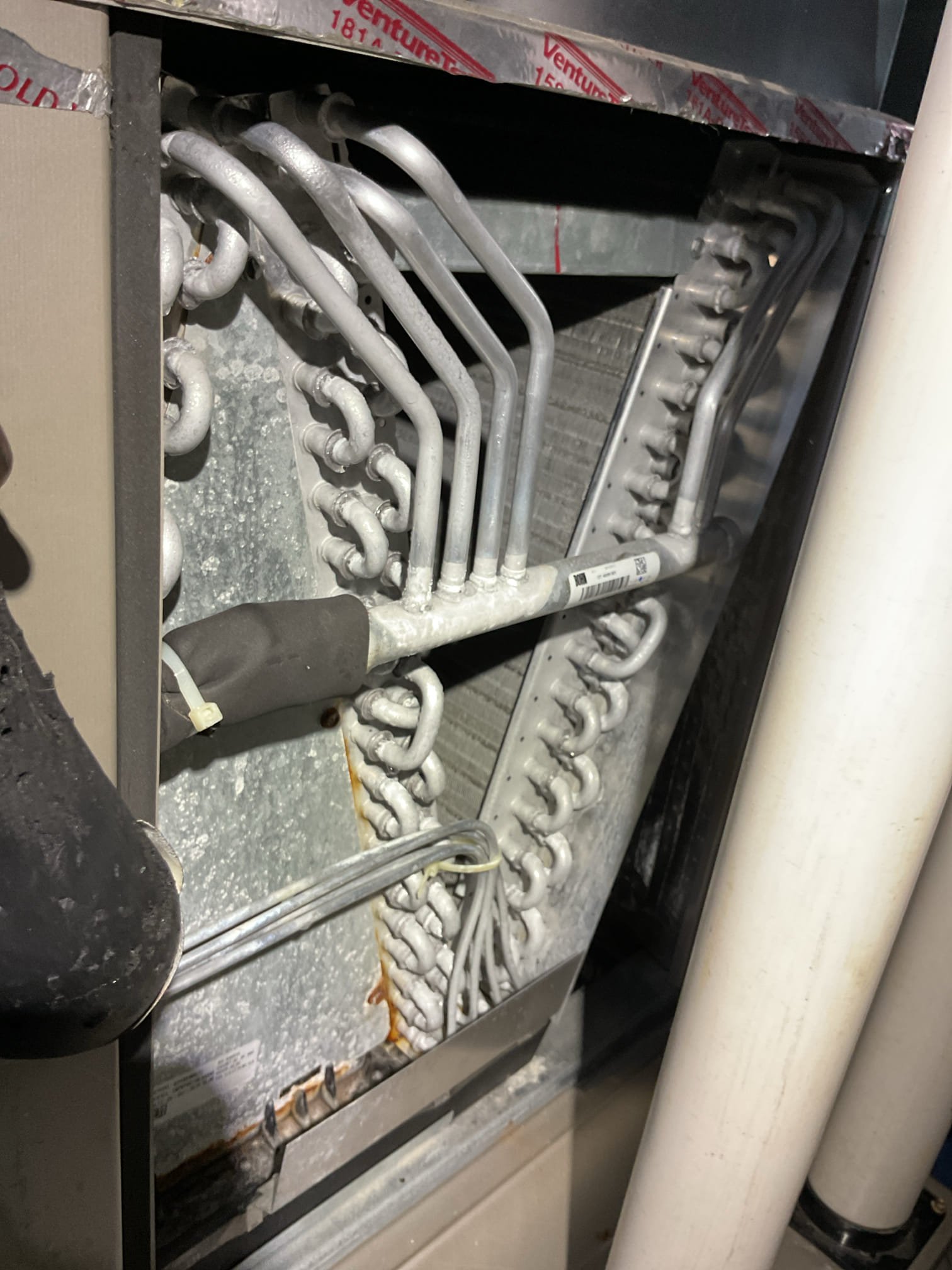

Completed AC tune up for 4 Ton Bryant AC system Replaced 16x25x1 filter Indoor and outdoor coils in good condition Inspected wiring, controls, electric motors and components; left estimates for surge protectors Measured temperature split and static pressure Inspected drains; recommend EZ trap (overfill protection switch), provided email estimate to install EZ trap. Checked integrity of compressor motor (mega ohm test) Assessed refrigerant charge checked pressures. Also provided email estimate for surge protection+EZ trap package. AC system operating well at this time.

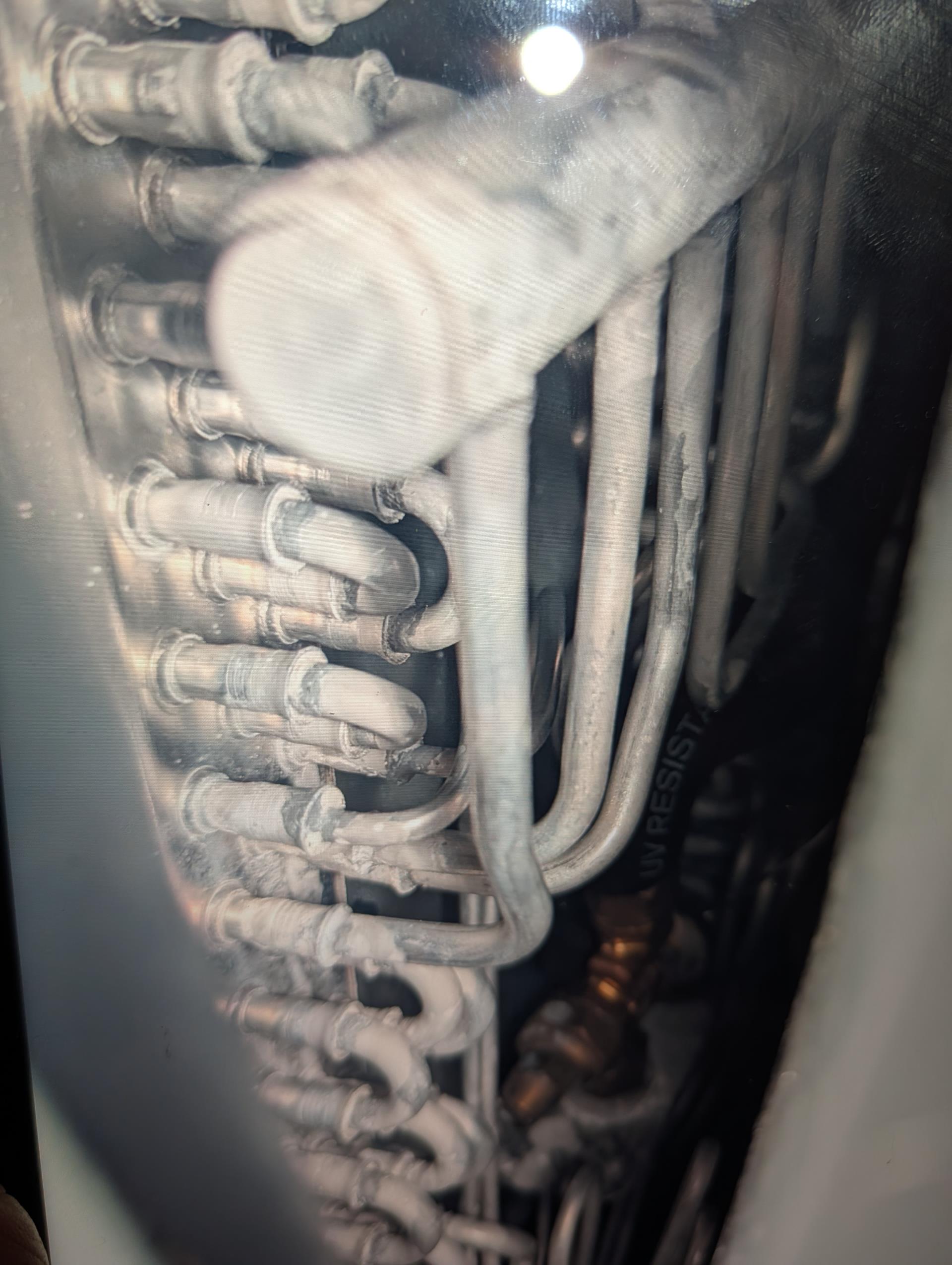

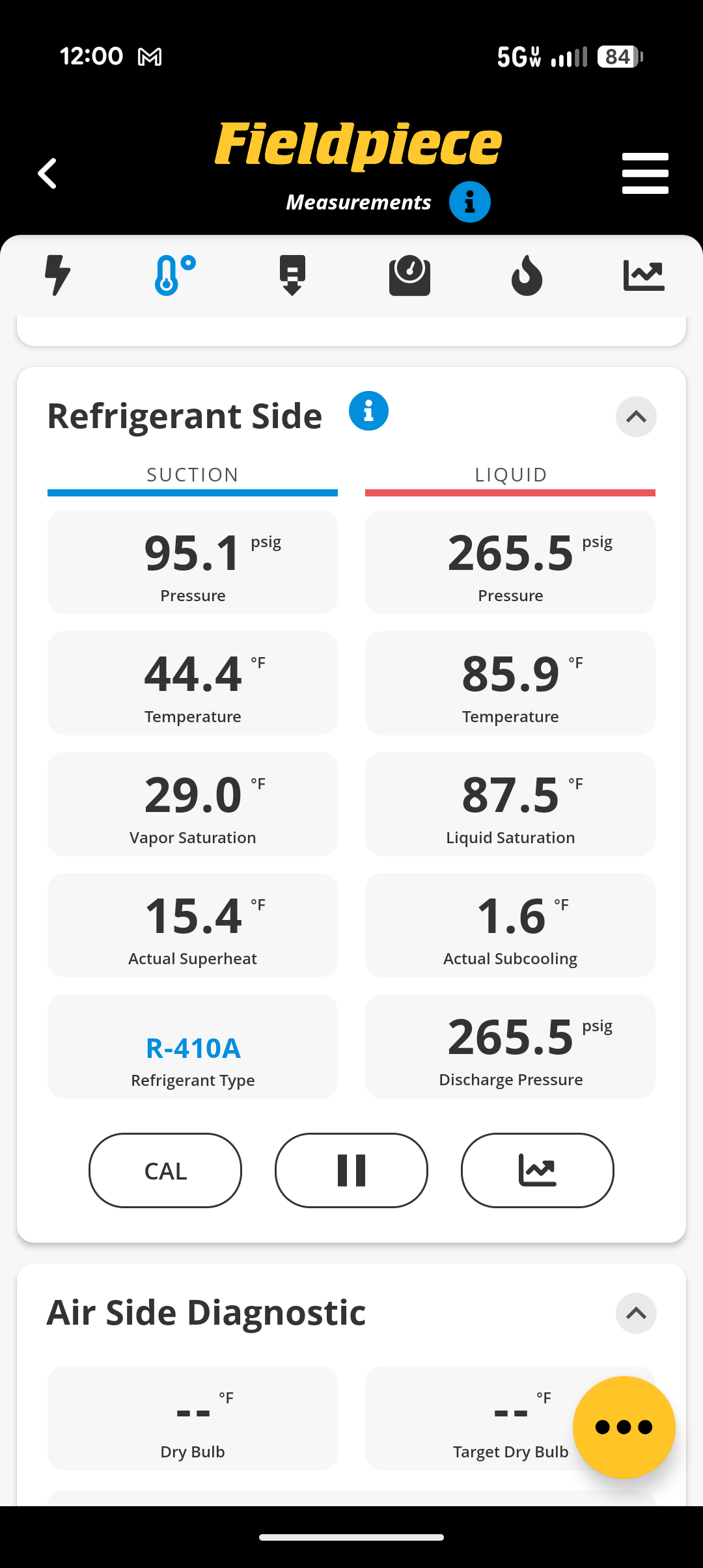

Completed AC tune up for 3 Ton Carrier AC system Replaced 16x20x1 filter ok Indoor and outdoor coils in good condition Inspected wiring, controls, electric motors and components; Measured temperature split and static pressure Inspected drains; cleared EZ trap, tested pump; Checked integrity of compressor motor (mega ohm test) Assessed refrigerant charge checked pressures. AC system operating well at this time. Installed APCOX Ultra whole home air treatment system: includes separate transformer to power system. Bulb lifespan is 3 years.

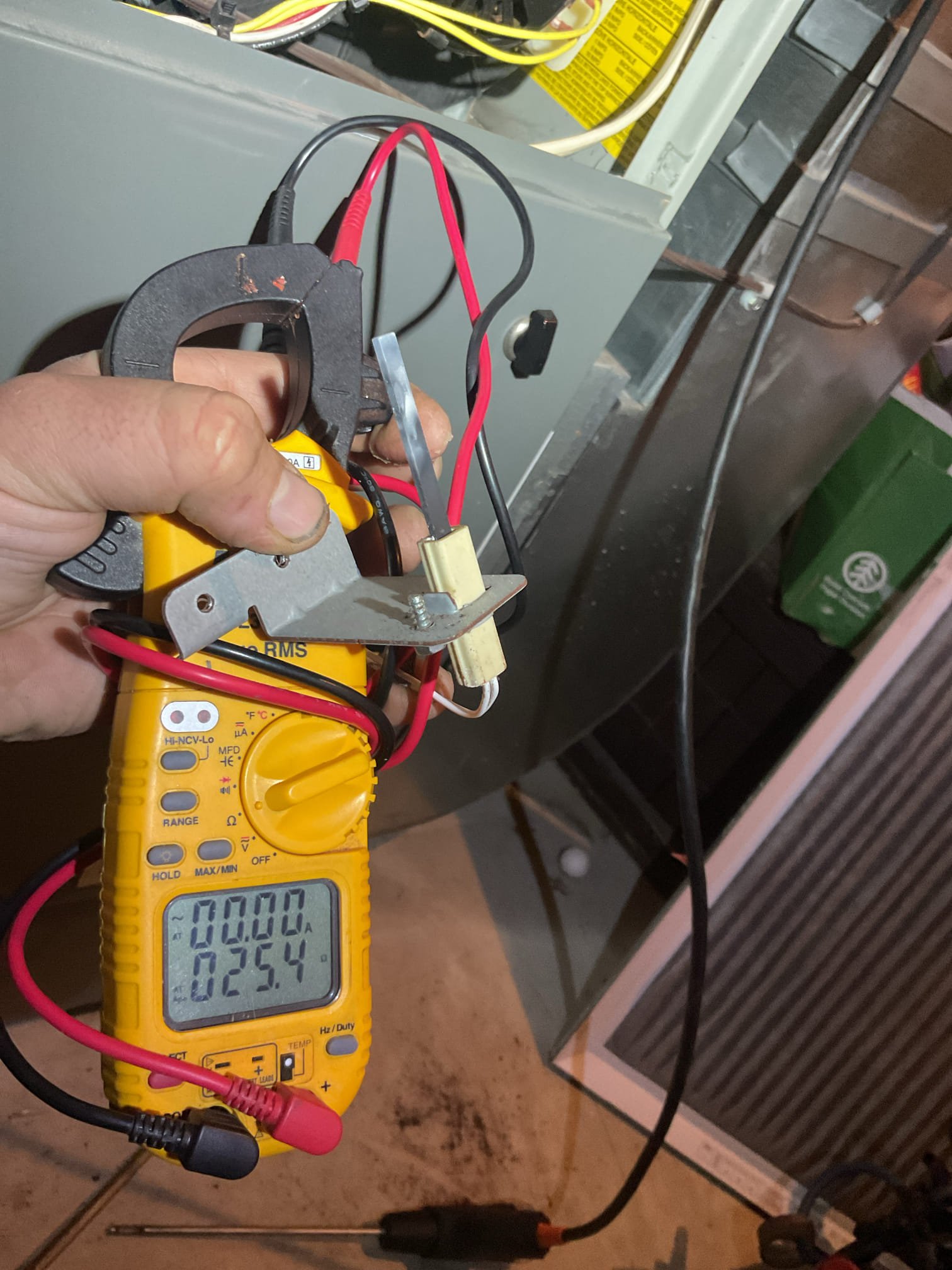

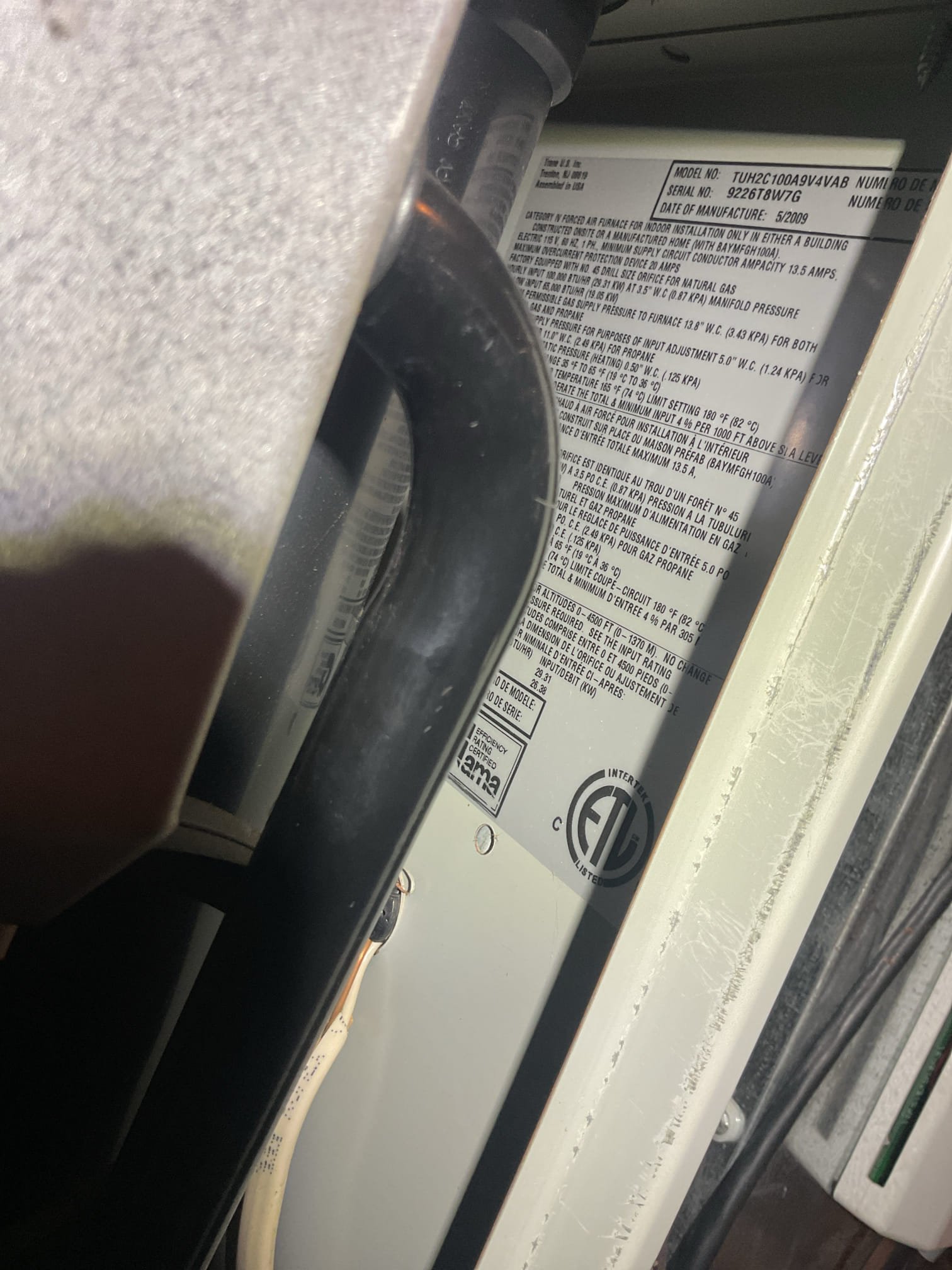

Completed heat tune up for natural gas furnace. 100,000 BTU 2-stage. Furnace dates to 6/11/2009. Approximately 17years old. This is the 1st Floor system. Replaced 20x25x filter Inspected heat exchanger, burners, flue pipe, inducer assembly and hoses Burner compartment and burners are rusted. Including the backside of burners. Provide estimate to replace burners, heat exchanger has several rust spots but no cracks. Inspected hot surface ignitor and verified resistance with meter. Discolored and white. Provided email estimate to replace ignitor. Cleaned flame sensor and verified flame rectification circuit Measured temperature rise and static pressure Checked wiring, controls, electric motors and components; there are no surge protectors; left estimate for a surge protector for each of the 2 main circuits of system Checked manifold gas pressures Inspected drains. There is an WZ trap for the AC drain but there is no wet switch. Provided email estimate to install wet switch/flood saf

Estimate for humidifier

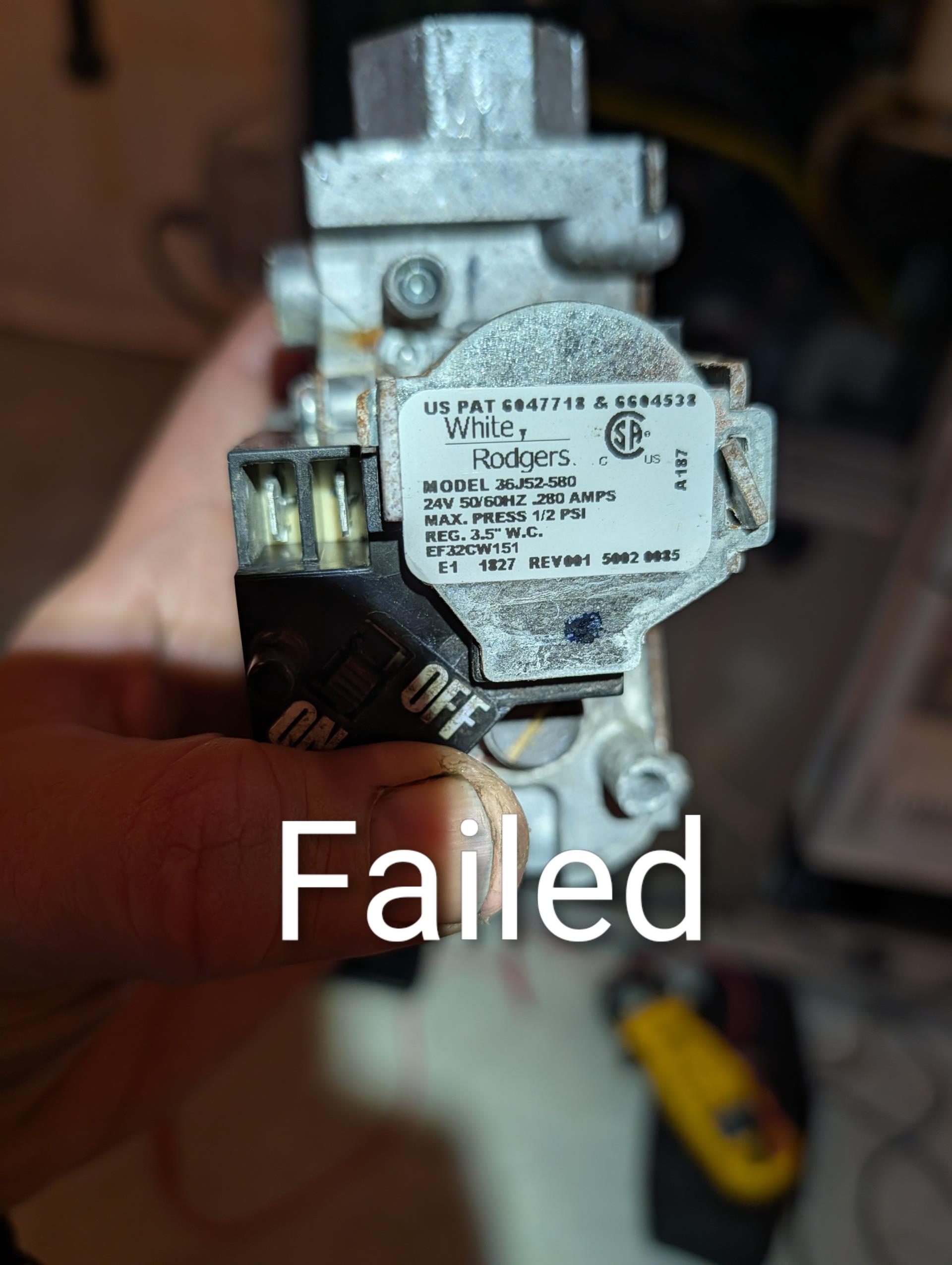

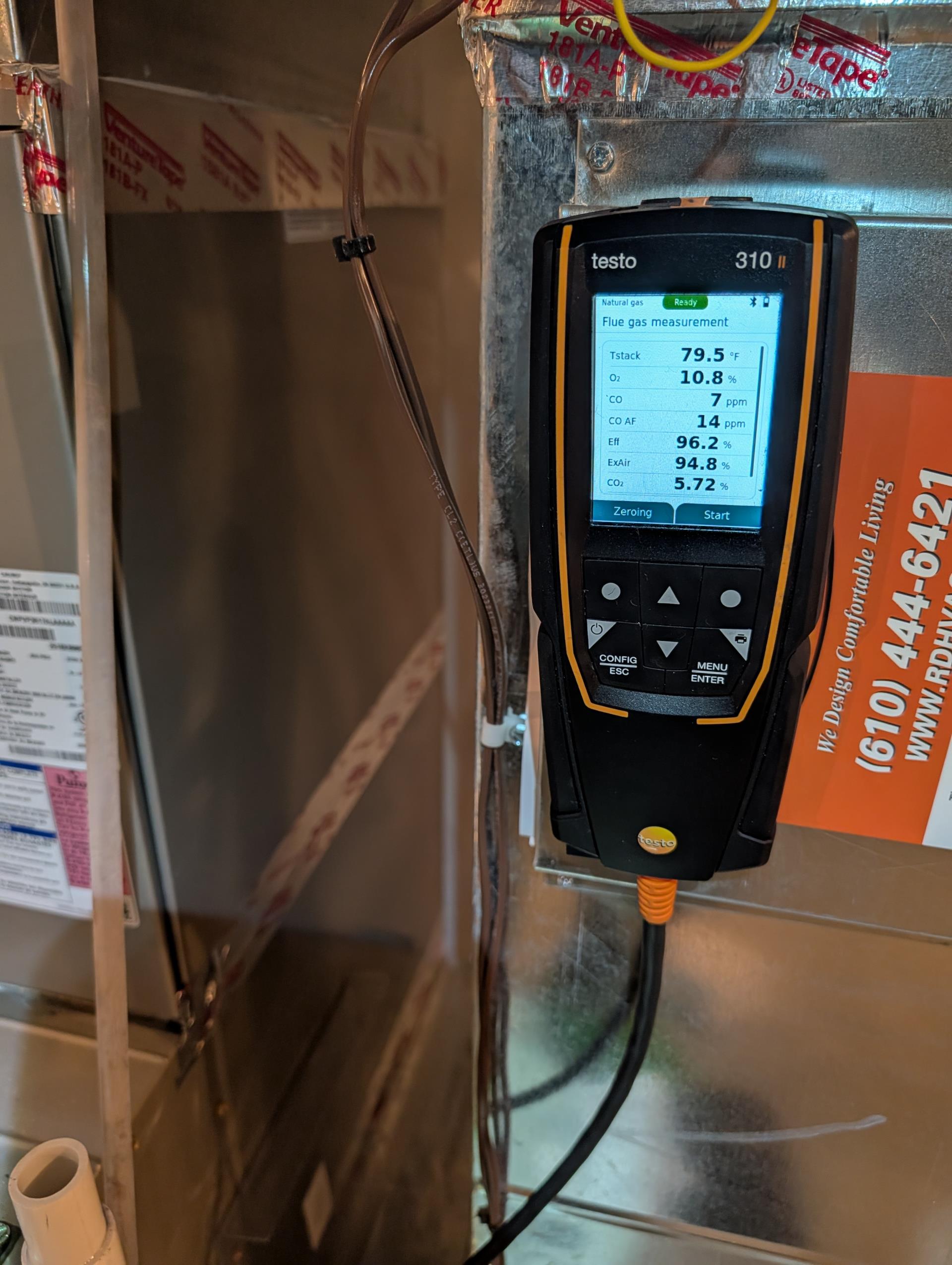

Found failed gas valve at 60,000 BTU natural gas furnace. Offered to replace along with plan membership. System and house from 2018 but equipment was never registered for extended 10 year parts warranty, so valve not covered under warranty. Replaced White Rodger’s gas valve, set gas pressure and tested system today. Checked for gas leaks at furnace from shut off valve to new gas valve. Cleaned flame sensor Verified furnace operations Combustion and draft tests pass. 16x20x1 filter ok Lots of water from exhaust getting back to inducer I recommend installing a wye fitting with a drain barb in exhaust to divert water directly to condensate removal pump to avoid water logging the inducer (combustion removal system). Provided email estimate. Also left estimates for surge protectors and water safety devices. She agreed to the drain wye repair and the surge protection+water safety package. System operating well at this time. Collected for work completed today (1218.21) plus half o

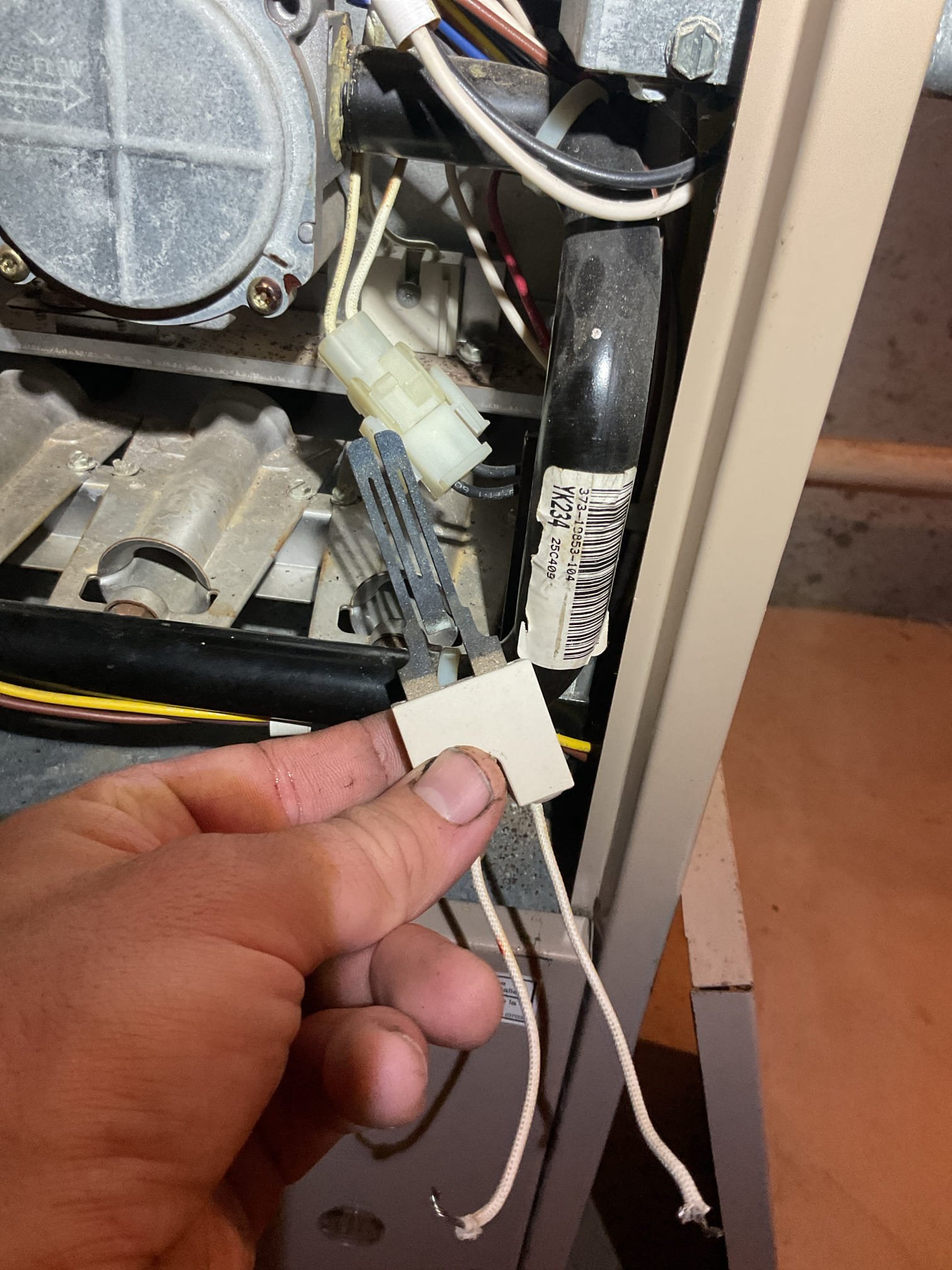

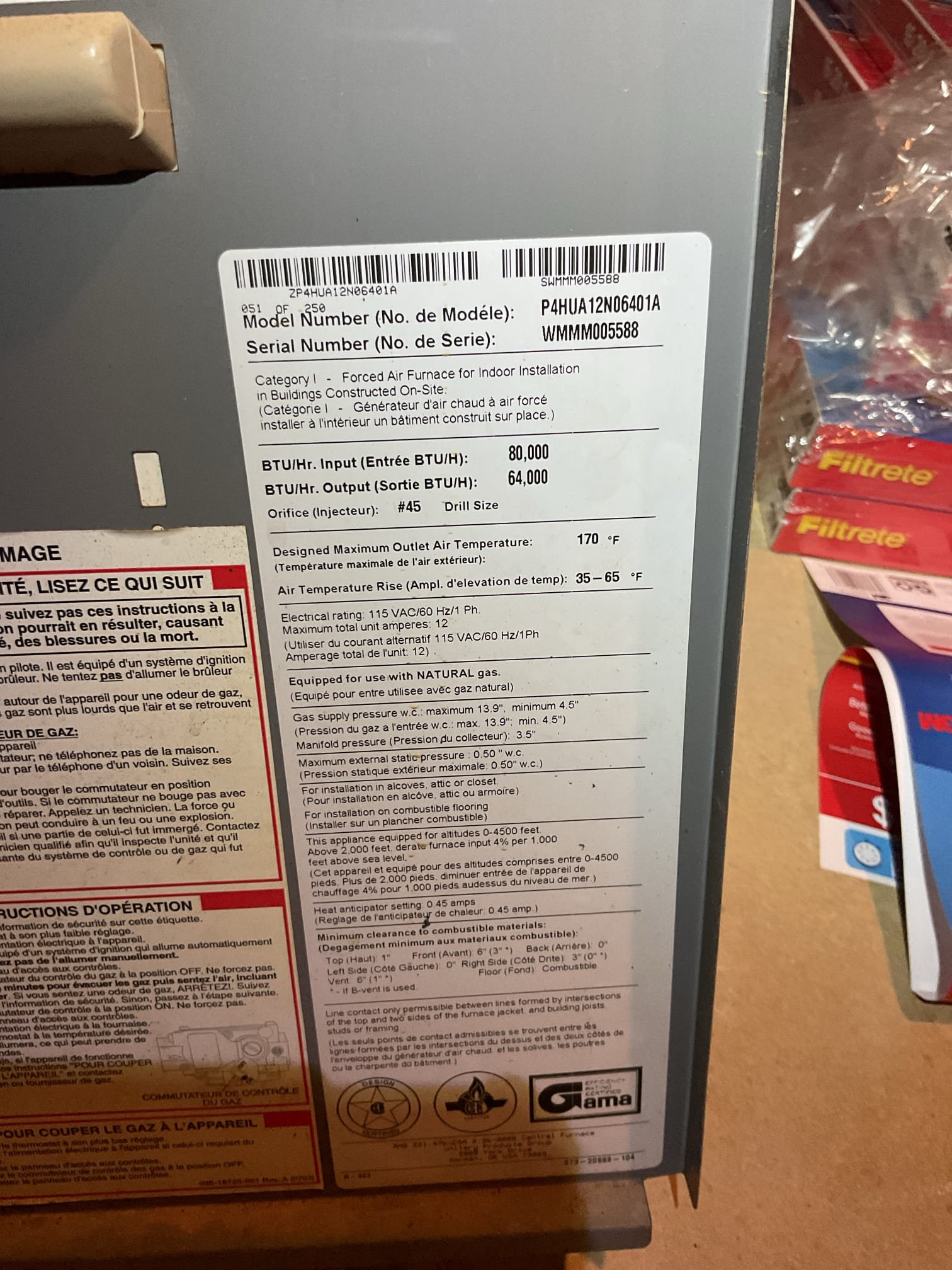

Completed (2) heat tune ups for natural gas furnaces. Replaced 16x25x1 filter for 1st floor system; was very dirty Replaced 16x20x1 filter for 2nd floor system For each furnace: Inspected heat exchanger, burners, flue pipe, inducer assembly and hoses: there are areas of concern with second floor furnace but no cracks, Mike is aware and plans to replace furnace soon. He would need an updated quote. Current quote is from late 2023. Inspected hot surface ignitor and verified resistance with meter Cleaned flame sensor and verified flame rectification circuit Measured temperature rise and static pressure Checked wiring, controls, electric motors and components; 1st floor funace has surge protector. left estimate for a surge protector for 2nd floor furnace. Checked manifold gas pressure Inspected drains. Recommend wet switch/flood safety for second floor system Combustion, draft and smoke tests: Pass Gas furnaces operating well at this time. He agreed to wet switch and surge prote
