Brookhaven, PA

Removed 5wk on heat kit

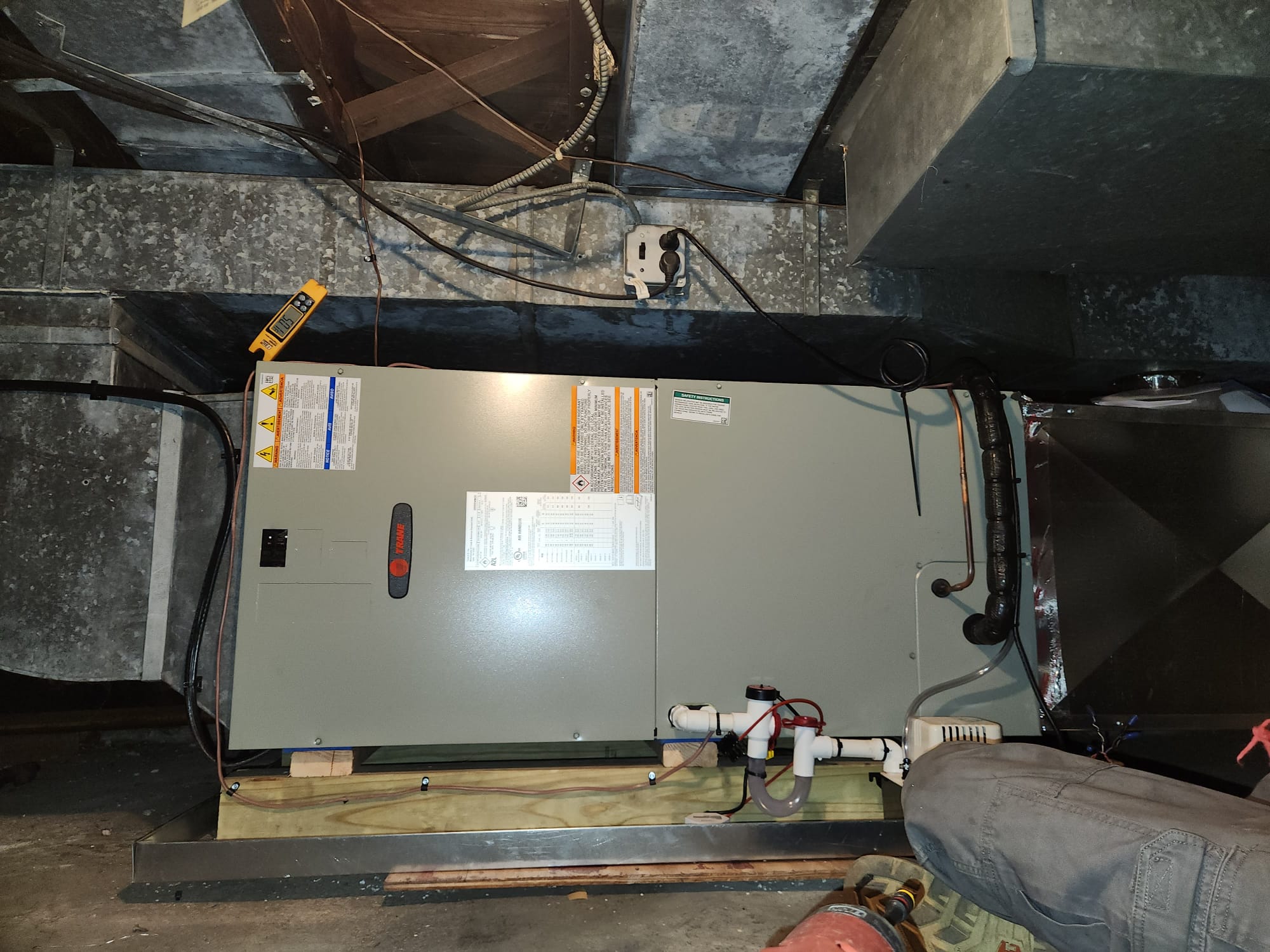

Set new unit in new auxiliary drain pan. Adapted to Supply and return ducts. Ran new high voltage wires from breaker panel to new unit. Ran new copper lineset from indoor to outdoor unit. Ran new condensate drain with ez trap to new condensate pump. Made all high and low voltage connections to unit. Wired all safeties in series to break 24v R call to thermostat. Set new unit on new pad and leveled. Hung new disconnect box with internal surge protector and sealed to wall. Piped in new lineset to unit. Brazed pressure tested evacuated and charged system. Made all high and low voltage connections to unit. Performed all test put procedures cleaned all work areas and reviewed installation with homeowner.

Seal ductwork including plenum on existing unit on all ducting in basement that is accessible. Seal with mastic on ductwork and foil tape or silicone around equipment connections. Remove end cap on one section of ductwork that is not properly connected in mechanical room. Attempt to reconnect as best as possible to reduce air leakage. Seal duct connections with mastic. Remove and pan off 2 supply registers on basement area trunk line, one on the end of the run and one in the open area of the basement. Pan off section on top of main trunk line in basement. Install (2) new 5" top takeoff adhesive collars and run new 5" hard pipe from take offs and connect to existing 3 1/4" x 12" supply register boots that are existing. Check airflows to each register on completion. Note: Ceiling will be taken down by Chris before project is started to allow access to bays where ductwork will be installed.

.

Tan 6/25/25 Responded to noise issue from AC condenser on balcony. Spoke to client when I arrived and she had complaints about her AC bothering her neighbors due to being loud. System was running and cooling as it should due to extremely hot weather. It’s set for 69° and will run long during these heat waves to remove as much heat from the home as possible. When I approached the closet I noticed it was louder than normal but not to the extreme sense. I felt the vibration from the balcony railing when I was leaning over to see the back side. I shut off the condenser and removed panel door. Checked wiring and configuration to ensure motors were properly wired. In rare instances, if wiring was done improperly the motors could go backwards and create a loud vibration, however this was not the case. Wiring and configuration were good. Checked fan motor mount and it was strong and stable. The fan itself was perfect and not giving off-balance rotation. I added vibration pads to the bottom of

Completed AC Tune up for 2 ton system. Development is Traditions at Ridley creek Appartment 424 Replaced 18x30x1 filter. Was very dirty. Recommend replacing every 3 months. Sent her video of how to do it. I bought filters from Lowe’s left (2) additional on site. She also ordered (4) more. Measured temperature split and static pressure Inspected wiring, controls, electrical motors. Recommend surge protectors. She says she doesn’t want estimates Indoor and outdoor coil in good condition Cleared EZ trap, flushed drain Verified refrigerant charge System operating well at this time. Debbie renewed plan today,

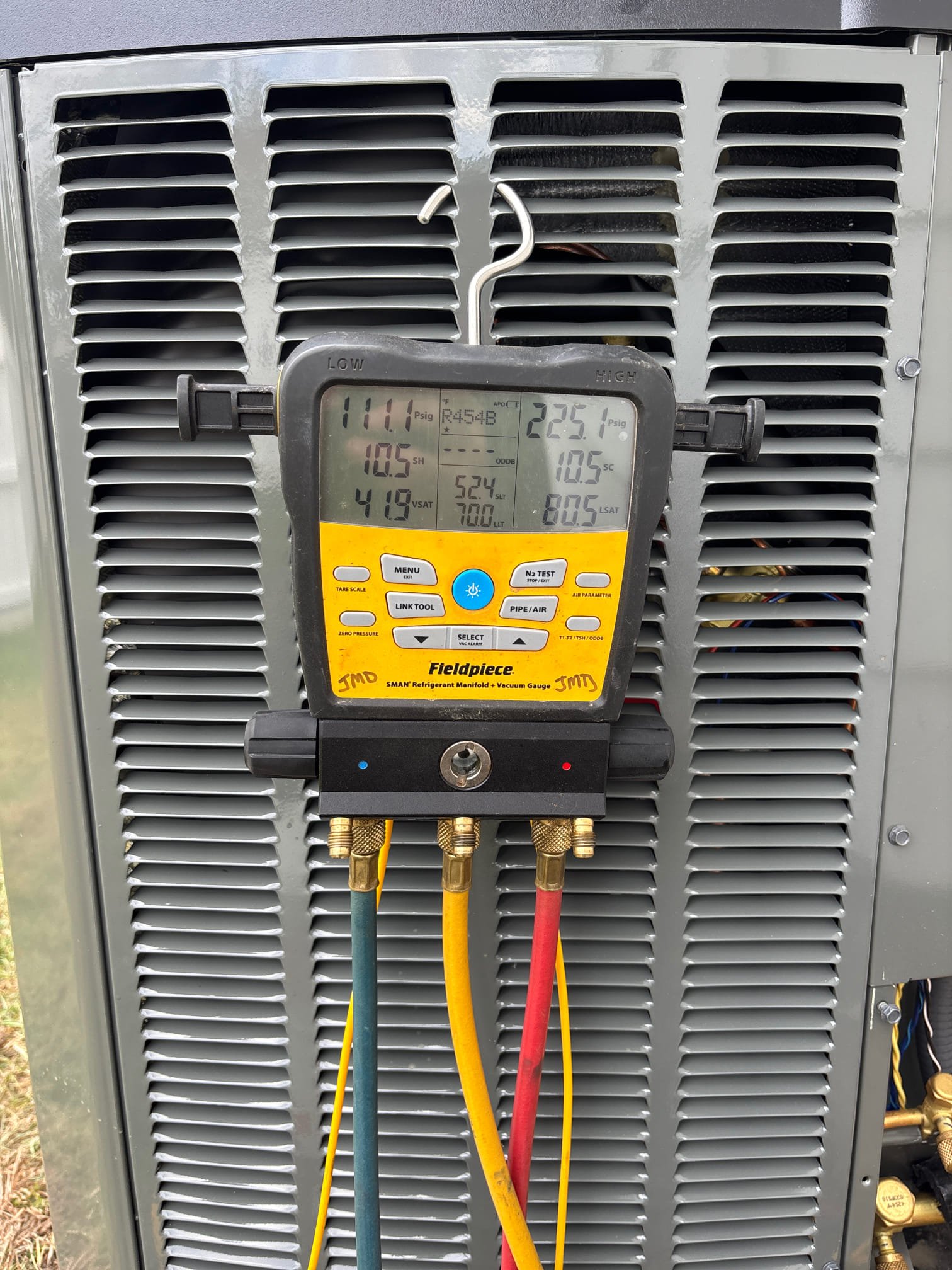

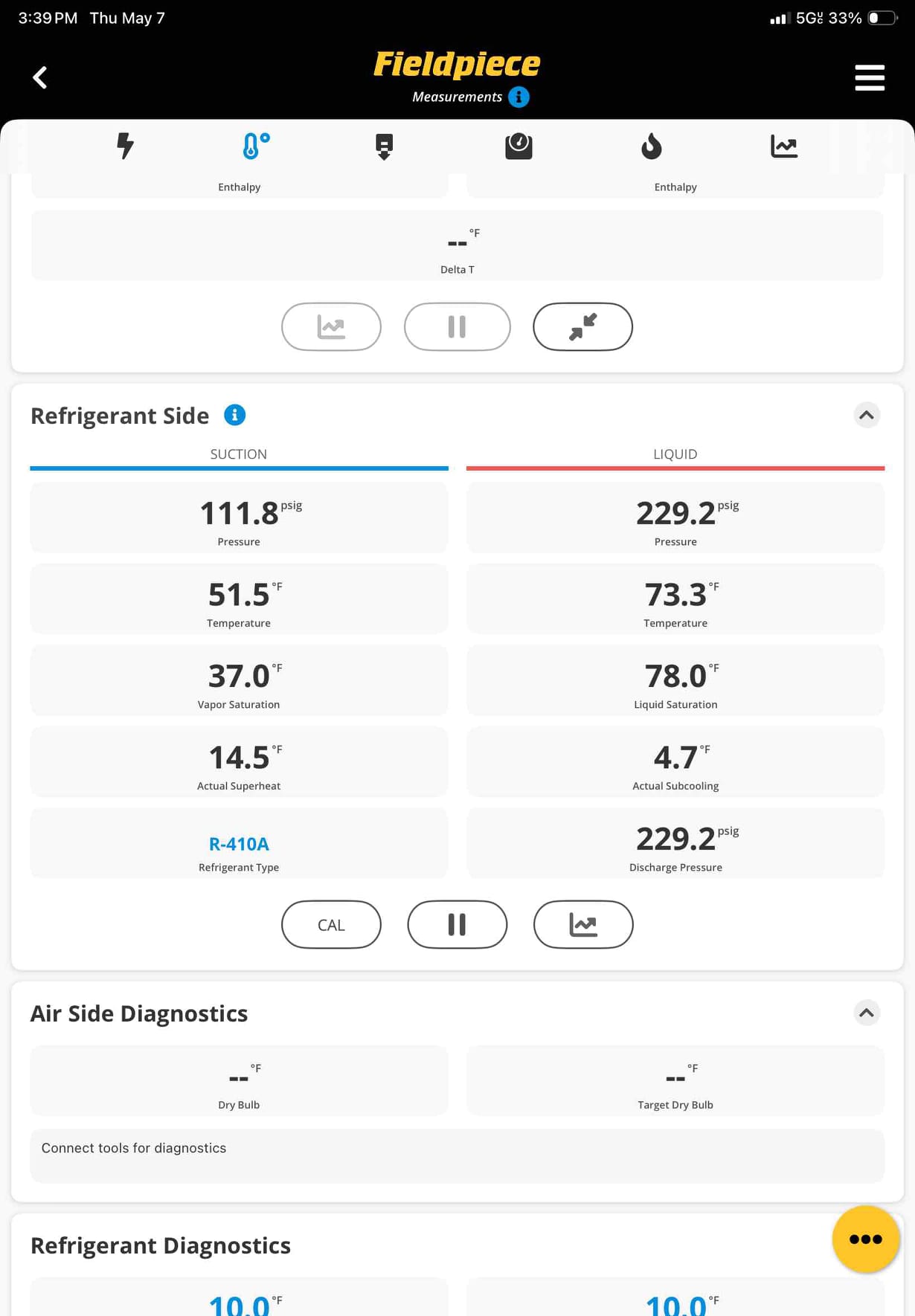

AC tune up for 2.5 ton Amana AC system: replace 16x25x1 filter. Inspected condition of both the indoor and outdoor coil Measured temperature split and static pressure check drain and EZ trap are clear Inspected wiring, controls, electric motors and components ok check refrigerant pressures and levels ok. Check capacitor and contactor ok clean outside coil with customer supplied water hose cycle ac unit ok. Provided estimate for preventative on tankless water heater and Reme cell replacement. We can perform these tasks during heat tune up. Please give more time to perform these tasks.

Reviewed home to look at home performance and converting from oil boiler to gas furnace and ac and heat pump systems.

Talked to Nick about the issues with the home. They just moved in 2 months ago and always feel cold, always hear the oil furnace coming on and off. Inspected home from basement to kneewall spaces to identify potential opporturtunities to increase comfort and efficiency. Will provide estimate for upgrades to insulation and and air sealing.

.
